Haunch bar length calculation

Haunch Bar Cutting Length Calculation for finding quantity/estimation of reinforcements bar which needs in the construction work is the most important part because without proper calculation (estimation) you have no idea about how many quantities required for haunch bar cutting length in building project construction So chances to loss of money if quantity if high and wastage of time if you buy less quantity.

How to Find Haunch Bar Length for Cutting

Here Civil Experience take an example of how to calculate haunch bar length for a better understanding of how to calculate cutting length of haunch bar.

The example gives you the flow of calculation methods because every site requires a different kind of design due to different kind of soil, environmental conditions, groundwater level, temperature etc.

So here we considered 3 steps for Haunch Bar Cutting Length Calculation

Also Read: What is Haunch Bar? Why provided?

Step consideration in Haunch Bar Cutting Length Calculation

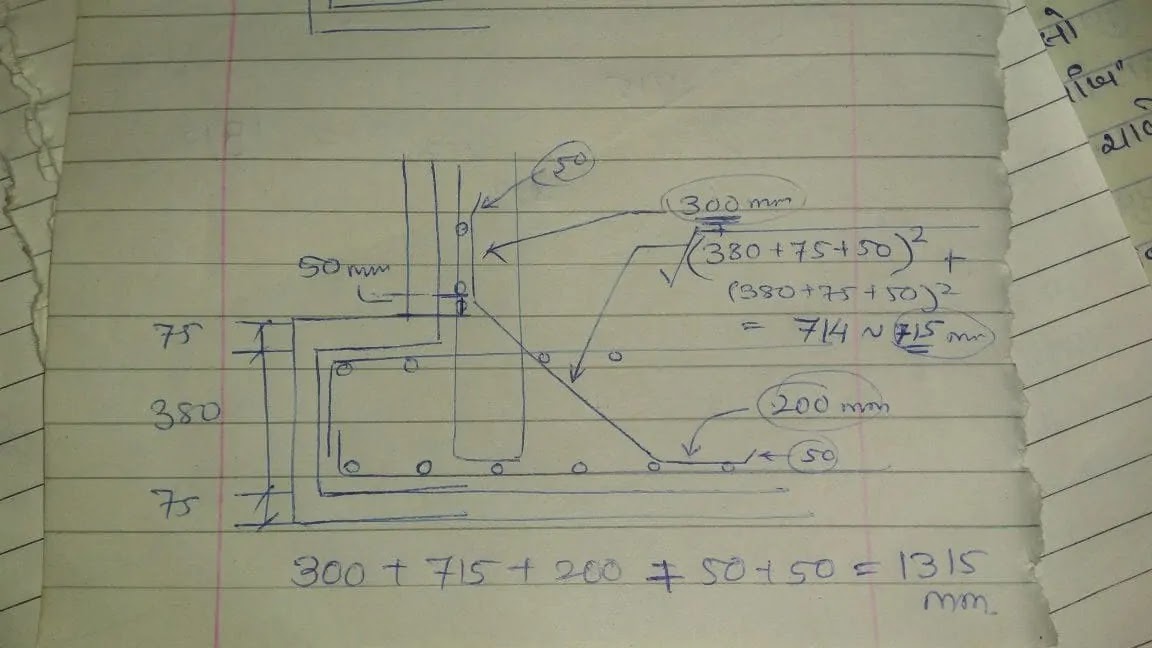

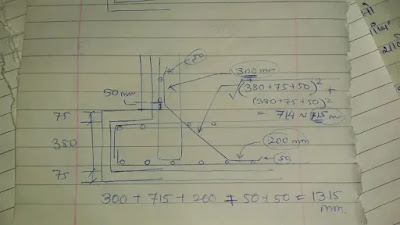

Haunch Bar Length Calculation
Haunch Bar Cutting Length
Haunch Bar Length

What is Haunch Bar

Step 1: Diagonal length Haunch Bar

The diagonal length of the haunch bar

For diagonal calculation, we use Pythagoras theorem

Pythagoras theorem is diagonal length is equal to the square root of the sum of both side square sum

Like

AC^2 = AB^2 + BC^2

Where B has 90 angels

In our Design

Diagonal length = Square root ( square of ( 380 + 75 + 50) ) + ( square of ( 380 + 75 + 50 ) )

Diagonal length = 714 mm

Here we cal take 715 mm for easy simple calculation

Where

380+75+50 is the total vertical and also horizontal length in your case may be is different so be care full

Also Read: Concrete Mix Design as per IS CODE easy way by excel sheet

Step 2: Supporting length of Haunch Bar

Now we adding value which given after diagonal length in Haunch Bar Cutting Length Calculation

Here additional value is 300 mm for the upper side and 200 mm lower side

Step 3: Hook length of Haunch Bar

The Third Step is adding hook length in Haunch Bar Cutting Length Calculation

Here is 50 mm for both ends

Final total length of haunch bar  = 50 + 300 + 715 + 200 + 50

Total length of haunch bar = 1315 mm

Note: is depend on your design requirement of the structure may be is some case is not provided when not provided then ignore it or assume its value zero
