10 Types Of Tests On Brick | How To Check Quality Of Bricks

Bricks in the construction site are the oldest and man-made product in building construction which mainly made by using clay so we have to perform some important tests on bricks to know the quality of bricks and sufficient for construction or not so in this article we learn about those tests in detail

According to use, different types of bricks are carried out for masonry work like mud bricks, refractory bricks, silica bricks, cement, fire etc so a test on brick is required because it’s man-made and also various types of material used in different types. Now basic question triggers in mind how many types of brick tests, Right?

Types of Tests on Brick

Brick Test | 10 Types Of Tests On Bricks | How To Check Quality Of Bricks

Download Above High-Quality HD Image of Brick Test

List of Types of Tests Required for Brick

For the best suitability types of bricks for construction work, we have to perform the following List of Types of Tests Required for bricks

  1. Brick Water Absorption Test
  2. Brick Compressive Strength Test (Crushing Strength Test)
  3. Brick Efflorescence Test
  4. Brick Dimensions Tolerance Test
  5. Hardness Test
  6. Size, Shape and Colour Test
  7. Warpage Test
  8. Soundness Test
  9. Structure Test
  10. Impact Test

How many bricks are needed for the brick test?

For testing bricks are taken randomly about 20, 32 & 50 no’s from a stack of (2k-10k), (10k-35k), and (35k-50k) bricks respectively where k = one thousand

It lot contains lass then or equal to 2000 bricks, the no of sampling shall be subjected to agreement between the purchaser & supplier

Also Read: IS 456:2000 CODE Book Free Download

Brick Water Absorption Test

Tests on bricks as per IS code (brick water absorption test is code) is 1077-1992 is available for guidance for the water absorption test of bricks procedure

Brick Water Absorption Test | Brick Test

Download Image

Objective Brick Water Absorption Test

This test is performed to know the water absorption of brick

A water absorption test is a laboratory test of bricks

Absorption of first-class bricks should not exceed 20% of the weight of dry brick

Apparatus Required for Water absorption test

  • Bricks
  • Ventilated Oven
  • Weighing balance
  • Water

Steps Procedure for water absorption test

Below procedures, step follow for carrying out the absorption test
  1. Take 5 nos of bricks randomly
  2. Make it dry in a ventilated oven at 110°C +- 5°C temperature for a period of 48 hours or more
  3. Note down the weight of bricks separately after cooling
  4. Afternote down weight immersed brick into the water at the normal room temperature for the period of 24 hours
  5. Then take out brick after 24 hours make it dry and Quickly note down weight one by one within 3 minit
  6. Not calculate absorption value by the simple formula
    • The water absorption in % = (weight of water absorbed/weight of brick before the test)*100
    • Absorption % = (W2-W1/W1) * 100

    • Where W1 is dry weight, W2 is the weight after immersion of brick for 24 hours
  7. Now carried out the average value of Absorption % all 5 brick. We take the average value for security/safety

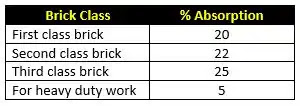

Water Absorption Test | | 10 Types Of Tests On Bricks
Water Absorption Test

Brick Compressive Strength Test

Brick Compressive Strength Test | Brick Test

Download Image

Objective for Compressive Strength Test of Brick

A comprehensive strength test of brick is performed to know the compressive strength of brick

IS code follows to perform Compressive Strength Test is 1077-1992 is available for guidance for Compressive strength of brick test IS code

Its also known as the “crushing test” of brick

Compressive strength test of brick is a laboratory test of bricks

The Minimum required crushing strength of bricks should be near 105kg/cm2

Apparatus Required for Compressive strength (Co)

  • Bricks
  • Compressive testing machine
  • Cement, sand and water for mortar

Step in Compressive Strength of brick test procedure

  1. Take 5 nos of bricks randomly
  2. Put it into the water for 24 hours at normal room temperature
  3. Take it out from the water after 24 hours and remove the water contents naturally after that clean the brick surface water
  4. After drying fill out brick frogs by using a standard mortar ratio of 1:1 (1 part cement and 1 part sand)
  5. Leave it for 24 hours in under moisture environment by using gunny or damp sanks to the setting of mortar
  6. Now time for curing brick for 7 days so that mortar gain their strength and became harden
  7. Take out a brick from the water after 7 days and allow the water to drain and make it dry after dry time for a compressive strength test
  8. Place the brick between the plate of the compressive testing machine flatwise keep in mind that the frog of brick facing upward
  9. The applied load axially at a uniform rate of 14 N/mm2/minit is still a failure of brick
  10. Note the Load (P) at which brick break or fail
    • Compressive/Crushing strength (Co) = [Maximun load at failure(p)/Area of the bed face of brick(A)]
  11. Test all 5 bricks and carried out arithmetic mean value of compressive strength
  12. Classification of bricks carried out with the help of Co (compressive strength)

Classification of bricks according to compressive strength

Class of Bricks

Compressive strength

First-class brick

105 kg/cm2

Second class brick

70 kg/cm2

Third class brick or common brick

35 kg/cm2

Fourth class brick or sun-dried brick

15 to 25 kg/cm2



Efflorescence Test for Brick

What is efflorescence in brick? This question irritates you Right? but now no more because you read Civil Experience article where we provide each and every detail so, after this, you don’t have to go any other site to find an answer related to Brick Test.

Efflorescence Test For Brick | Test On Brick

Objective of Efflorescence Test for Brick

An efflorescence test of the brick procedure is performed to know the presence of any alkaline matter in the brick

Efflorescence test of brick IS code: 1077-1970 is available for guidance for the efflorescence of bricks test

The compressive strength test is a laboratory test on bricks or a field test on bricks

Steps Procedure for Efflorescence test

  1. Take 5 nos of bricks randomly
  2. Bricks are kept in a 150mm dish, containing 25mm depth of distilled water till the entire water is absorbed or evaporated or 24 hours
  3. The water was again filled by 25 mm if more water evaporated
  4. Keep the dishes used for the test at a warm room temperature of 18°C to 30°C which allows proper ventilation
  5. Take out and allowed it to dry at the end check the brick for efflorescence which is identified by seeing white particles of solt on the surface of the bricks

Classification of bricks according to the percentage of effloresce area

Classification

% of Efflorescence

Nil

No visual deposit

Slight

< 10%

Moderate

10-50%

Heavy

>50%

Serious

Heavy & powdered

Check your specification for allowable efflorescence like in heavy brickwork, it must require nil efflorescence and also for first-class bricks

Brick Dimension Tolerance Test

Objective of Brick Dimension Tolerance Test

A dimensional tolerance test of bricks is performed to know whether the bricks have the required dimension or not

IS code: 1077-1970/1992 is available for guidance for dimension test of clay bricks in such a way so that

Steps Procedure for dimension test of brick

  1. Take 20 nos of bricks randomly
  2. Make brick clean by removing loose particles of clay materials and projecting cysts etc from the surface of the brick
  3. Place the brick on the level smooth surface in series so that surfaces of the bricks are connected with each other
  4. Bricks arrangement done in line with a dimension which is checked

Hardness Test

How to hardness test proform to check the quality of brick? read below part of

Hardness test of bricks perform on anywhere on the field and lab test of bricks to know the resistance capacity of bricks

Steps Procedure for how is the hardness of brick tested

  1. Take 20 nos of bricks randomly
  2. In this test, an attempt is made on the surface of the bricks to make a with the help of a fingernail or any sharp tool
  3. Then observed the brick closely
  4. If you have not found any sign of impression on the brick surface means the brick is hard enough

Size, Shape and Colour Test

Shape and Size Test

Shape and size test of brick perform on anywhere on a field test of brick or laboratory test of bricks

  1. Take 20 nos of bricks randomly
  2. Stacked bricks lengthwise along with the height and width
  3. For best bricks results must be within the following permissible limits

Length

3680 mm to 3920 mm

Width

1740 mm to 1860 mm

Height

1740 mm to 1860 mm

Colour Test

Good bricks always have uniform dark red or copper colour

Warpage test

Warpage (band/twist out of shape) of bricks is measured with the help of flat steel or glass surface
Warpage = the greatest distance of crick surface from the edge of straightness

Soundness Test

Soundness test of brick carried out to check the nature of bricks when it connects with sudden impact load

Steps Procedure for Soundness test

  1. Take two random bricks
  2. Then struck them with each other
  3. If brick produce well metallic sound then tested brick quality is good

Structure Test

This test performs on anywhere on-site or laboratory

Steps Procedure for Structure test

  1. Eliminated broken brick and then inspect other bricks
  2. Its structure should be homogeneous materials well compacted
  3. Then check it is free from any imperfections or not like lumps or holes etc

Impact Test

Impact test of brick perform on anywhere on-site or laboratory

Steps Procedure for impact test

  1. Take the bricks
  2. Drop if freely from a 1-meter height on a hard surface
  3. Inspect the dropped brick for any damage that has occurred or not
  4. If the bricks broke or crack it means that the brick’s impact value is lower so reject those brick
In conclusion, I think I cover all possible tests required for bricks in steps wise in an easy way if you find out any suggestions or add any test which is missing then free to inform the comment section
If this article is useful for you then please share it and bookmark this blog
FAQ 1: List of Types of Tests Required for Brick

1. Brick Water Absorption Test,2. Brick Compressive Strength Test (Crushing Strength Test),3. Brick Efflorescence Test,4. Brick Dimensions Tolerance Test,5. Hardness Test,6. Size, Shape and Colour Test,7. Warpage Test,8. Soundness Test,9. Structure Test,10. Impact Test.

FAQ 2: Brick Water Absorption Test

Objective Brick Water Absorption TestThis test is performed to know the water absorption of breakwater absorption test is a laboratory test of brisk absorption of first-class bricks should not exceed 20% of the weight of dry brick

FAQ 3: Brick Compressive Strength Test

A comprehensive strength test of brick is performed to know the compressive strength of brick IS code follows to perform Compressive Strength Test is 1077-1992 is available for guidance for Compressive strength of brick test IS code Its also known as the “crushing test” of brick Compressive strength test of brick is a laboratory test of bricksThe Minimum required crushing strength of bricks should be near 105kg/cm2Apparatus Required for Compressive strength (Co)- Bricks,- Compressive testing machine,- Cement, sand and water for mortar.

FAQ 4: Efflorescence Test for Brick

What is efflorescence in brick? This question irritates you Right? but now no more because you read Civil Experience article where we provide each and every detail so, after this, you don’t have to go any other site to find an answer related to Brick Test. The objective of the Efflorescence Test for BrickEfflorescence test of the brick procedure is performed to know the presence of any alkaline matter in the brickEfflorescence test of brick IS code: 1077-1970 is available for guidance for the efflorescence of bricks test The compressive strength test is a laboratory test on bricks or a field tests on bricks

FAQ 5: How to hardness test proform to check the quality of brick?

Steps Procedure for how is the hardness of brick tested…1. Take 20 nos of bricks randomly2. In this test, an attempt is made on the surface of the bricks to make a with the help of a fingernail or any sharp tool3. Then observed the brick closely4. If you have not found any sign of impression on the brick surface means brick is hard enough
